When it comes to underground mining, the Load Haul Dump (LHD) machine is a true workhorse. These beasts are specifically designed to tackle the toughest jobs in the most challenging conditions. But what exactly makes LHDs so indispensable in the mining industry? In this blog, we’ll dive into the world of Load Haul Dump machines, exploring their features, capabilities, and why they’re essential for modern mining operations. Whether you’re a seasoned miner or just curious about heavy machinery, you’re in for a treat!
1. What Exactly is a Load Haul Dump (LHD) Machine?

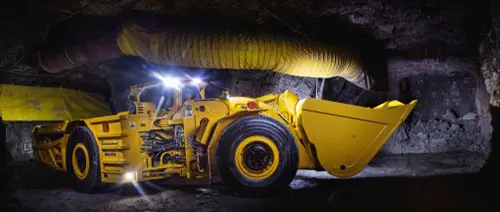

An LHD, short for Load Haul Dump machine, is a type of specialized underground loader used primarily in hard rock mining. While they may look like conventional front-end loaders, LHDs are built to withstand the demanding conditions of underground operations. More than 75% of the world’s underground metal mines rely on these machines for moving material from the mining face to a transport vessel or dump site. So, when it comes to mucking out those deep, dark tunnels, the LHD is the undisputed champion.
Construction and Design
LHDs are built with a narrow, elongated profile, making them ideal for navigating the tight spaces of underground mines. Their construction includes robust prime movers, advanced drivetrain technology, and heavy-duty planetary axles. They’re equipped with four-wheel drive, articulated steering, and ergonomic controls, ensuring maximum maneuverability and operator comfort.
The two-part articulated construction helps these machines track through the tightest of underground corners. In environments where height and width are constrained but length is not, the LHD’s design is perfectly suited for efficient operation.
Capacity Matters
LHD machines come in a variety of sizes, with tramming capacities ranging from 1 to 25 tonnes. The bucket sizes also vary, typically between 0.8 to 10 cubic meters, depending on the machine’s size and intended use. This variety allows mining operations to choose the right LHD for the specific demands of their site, ensuring optimal efficiency and productivity.
2. Diesel or Electric? The Power Behind LHDs
One of the key decisions when selecting an LHD is whether to opt for a diesel-powered or electric model. Each has its pros and cons, and the choice often depends on the specific needs of the mining operation.
Diesel LHDs
Diesel LHDs are the more traditional choice and are favored for their portability. These machines are typically powered by engines ranging from 75 to 150 horsepower. Diesel LHDs are known for their robust performance, especially in environments where electrical infrastructure might be lacking. However, they do produce emissions and heat, which can be a challenge in underground environments that require extensive ventilation.
Electric LHDs

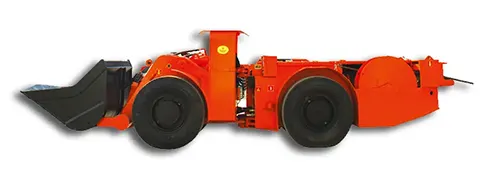

Electric LHDs are becoming increasingly popular due to their lower emissions and heat output. These machines operate on medium voltage, typically between 380 to 550 volts, and are powered by electric motors with similar horsepower to their diesel counterparts. The electric model’s main advantage lies in its environmental benefits and reduced operating costs. However, they require a trailing cable for power, which can limit their range and maneuverability.
The Hybrid Option
In recent years, hybrid LHDs have started to make waves in the mining industry. These machines combine the best of both worlds, operating on diesel power while also incorporating electric or battery capabilities. The hybrid approach reduces fuel consumption and emissions while providing the flexibility and power needed for demanding mining tasks. The shift towards hybrid technology is a response to the growing emphasis on sustainability in the industry.
3. Productivity: Why LHDs Are a Miner’s Best Friend
When it comes to productivity, LHDs are designed to maximize efficiency. Despite having slower travel speeds compared to conventional loaders, LHDs make up for it with enhanced loading capacity. In fact, LHDs can offer up to 50% more loading capacity in a compact form factor, making them ideal for underground operations where space is at a premium.
Enhanced Work Cycle
LHDs are designed to streamline the work cycle, from loading to hauling to dumping. The advanced traction systems, combined with smooth operation, lead to shorter cycle times and reduced operational costs. Many modern LHDs are equipped with features like hybrid drives, which capture and reuse braking energy, further enhancing efficiency and reducing fuel consumption.
Automation and Remote Operation

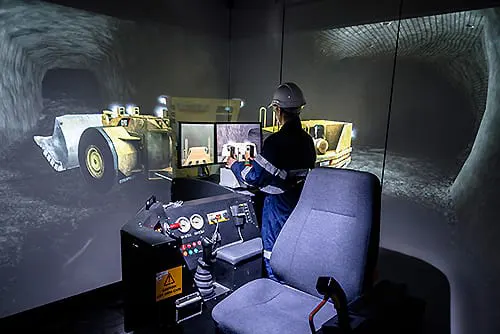

Automation is a game-changer in the mining industry, and LHDs are no exception. Many modern LHDs come equipped with advanced automated controls, allowing operators to perform complex tasks with the press of a button. Remote operation capabilities are particularly valuable in dangerous environments, enabling miners to operate the LHD from a safe distance. This not only improves safety but also increases productivity by allowing continuous operation in hazardous areas.
4. Safety Features: Because No Job is Worth Your Life
Safety is paramount in any mining operation, and LHDs are equipped with a host of safety features to protect operators and other workers.
Built-In Safety Systems
Most LHDs come with failsafe braking systems, emergency stop functions, and ROPS/FOPS (Rollover Protection Structure/Falling Object Protection Structure) certification for the operator’s cabin. These features are designed to keep operators safe, even in the most challenging conditions.
Operator Comfort
A comfortable operator is a productive operator. That’s why LHD cabins are designed with ergonomic controls, air-suspended seats, and smart displays that provide real-time diagnostics and operational metrics. These features not only enhance safety but also reduce operator fatigue, leading to more efficient and longer operation times.
5. Reliability: Built to Last
Underground mining is tough on equipment, and LHDs are built to take a beating. Their rugged steel frames provide protection against the wear and tear of harsh underground environments. The advanced hydraulic systems with piston pumps offer cooler operation, extending the lifespan of the machine.
Low Maintenance, High Performance
One of the standout features of LHDs is their low maintenance requirements. Many LHDs come with central automatic lubrication systems that keep critical joints well-lubricated, reducing the need for regular maintenance. This means fewer interruptions and more time spent moving material, which is what LHDs do best.
6. The Evolution of LHDs: From Diesel Guzzlers to Green Machines
The evolution of LHDs over the years has been nothing short of impressive. From the early days of diesel-powered machines to the introduction of electric and hybrid models, LHDs have come a long way. This evolution reflects the broader trends in the mining industry, where there is a growing emphasis on sustainability and reducing the environmental impact of operations.
The Push for Greener Operations
As the world moves towards greener practices, the mining industry is no exception. The development of hybrid and electric LHDs is part of this push, offering a way to reduce emissions and fuel consumption while maintaining high levels of productivity. The future of LHDs looks bright, with ongoing advancements in automation, efficiency, and environmental sustainability.
7. Conclusion: The Future of Load Haul Dump Machines
In conclusion, Load Haul Dump machines are a vital component of modern underground mining operations. Their combination of power, efficiency, and safety makes them indispensable in the industry. As technology continues to advance, we can expect to see even more innovative features and improvements in LHDs, further cementing their role as the backbone of underground mining.
So, whether you’re deep in the mines or just interested in the machinery that makes it all possible, Load Haul Dump machines are a fascinating subject. With their blend of ruggedness, technology, and efficiency, they truly are the unsung heroes of the mining world.
There you have it—a deep dive into the world of Load Haul Dump machines. Whether you’re looking to enhance your operation or just curious about mining equipment, LHDs are definitely worth knowing about. Who knows, the next time you see one of these powerful machines at work, you might just appreciate it a little more.
